Perforated Metal And Several Layers Of Wire Mesh

The product is sintered by the punching plate and multi-layer stainless steel wire mesh. Due to the support of punching plate, it has the higher pressure and mechanical strength. It is mainly used in food&beverage, water treatment, dust removing, pharmacy, polymer,etc.



Type C Sintered Wire Mesh Summary
The product is sintered by the punching plate and multi-layer stainless steel wire mesh. Due to the support of punching plate, it has the higher pressure and mechanical strength. It is mainly used in food&beverage, water treatment, dust removing, pharmacy, polymer,etc. It can be processed into various filters: tube, disc and sheet. The thickness of the punching plate and structure of the wire mesh can be customized according to the user’s requirements.

Type C Sintered Wire Mesh Material
The standard material are SS304, SS304L, SS316, SS316L. Special Alloy Steel Hastelloy C-276, Monel 400, Inconel600, SS904, SS904L, Duplex steel 2205 are acceptable based on customer’s requirement.

Type C Sintered Wire Mesh Size
The standard size are 500×1000mm, 600×1200mm, 1000×1000mm, 1200×1200mm, 1200×1500mm, and special size in range can be finished as requirement.

Type C Sintered Wire Mesh

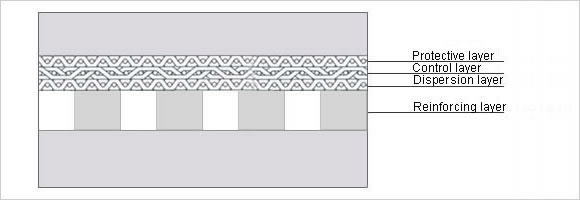

The Structural Drawing of Type C Sintered Wire Mesh

Type C Sintered Wire Mesh Technical Parameter

Model Filter Rating(u) Structure Thickness(mm) Weight(kg/m2) Porosity(%)
C4-2.0T 2-200 30+Filter layer+30+φ4x5Px1.0T 2.0 6.7 57
C4-2.5T 2-200 30+Filter layer+30+φ5x7Px1.5T 2.5 9.8 50
C5-3.0T 2-200 60+Filter layer+60++20+φ6x8Px2.0T 3.0 11.8 50
C5-3.5T 2-200 20+Filter layer+20+10+φ8x10Px2.0T 3.5 12.6 54
C5-4.0T 2-200 20+Filter layer+20+10+φ8x10Px2.5T 4.0 14.2 55
C5-4.3T 5-200 20+Filter layer+20+10+φ10x13Px3.0T 4.3 16.9 50
C5-5.3T 5-200 20+Filter layer+20+10+φ10x13Px4.0T 5.3 20.6 51

Type C Sintered Wire Mesh Note:
1. We can choose the filter layer by the customer,s needs within the filter rating.
2. Other special structures can be made to the customer,s need.
3. The porosity is based on 20 umicron filter layer.

Application of Type C Sintered Wire Mesh

1. Air Fluidized Plate
It is also called air amplifier or air boiling disc. And it is mainly applied in dust removing, filtering and coal powder recycling in the heat power plant. In addition, it can be processed according to customer's request as to the filter rating and specification.

2. Cylinder Tube and Basket Filter
It is mainly used in food, beverage and water treatment, etc. Due to the support of the punching plate, this kind of product has the better strength and easier to back wash.

3. Automatic Filter cartridge
This kind of filter cartridges are mainly used in automatic filter equiment of sea water filtration,ballast water microorganism filtration,waste water,city water,irrigation and so on water treatment.
